Comparing TBS options for coin operators and bill acceptors

If you're setting up or maintaining a TBS 9900 kiosk, choosing the right coin or bill acceptor is important for reliable operation and customer convenience. This guide walks you through the key differences between popular models: the MEI Talos, Coin-Co BP4BX, and CPI VN27C2R for bill acceptors; and the MEI Gryphon, CPI CF7000, and Coin-Co 9302-GX for coin mechanisms. We'll help you compare features, compatibility, and practical considerations so you can make an informed choice.

Understanding Bill Acceptors for TBS Kiosk/9900s

Bill acceptors scan, validate, and accept paper currency. They’re essential for kiosks/9900s that accept cash, and each model offers unique features and benefits.

  • Coin-Co BP4BX Bill Acceptor

  • MEI Talos Bill Recycler

  • CPI VN27C2R Bill Recycler

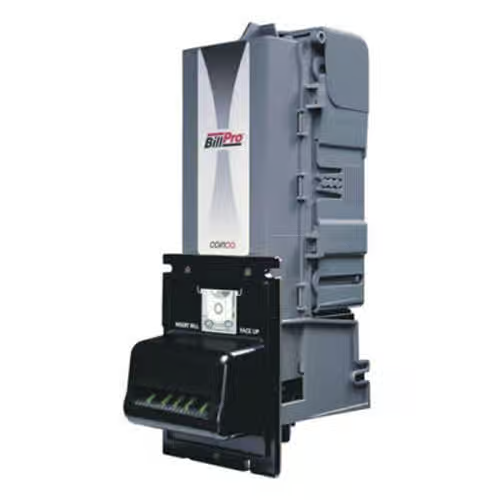

Coin-Co BP4BX (BillPro)

  • Reliable Performance: Mid-generation Coinco BillPro workhorse. Common in TBS Kiosk/9900s; compact, no separate control box.

  • Bills Accepted: US $1, $5, $10, and $20 (programmable to enable which denominations). Does not return paper money as change — stack-only.

  • Bill Stacking: Flex Stack box starts around 300 notes and expands to 500.

  • Interface: MDB (standard 6-pin). No USB on this series. Flash-programmable firmware for currency updates.

  • Service: Modular snap-in path for cleaning; anti-jam software and a bill-path clearing routine; scalloped path for damp notes; illuminated green inlet LEDs; returned-bill feature.

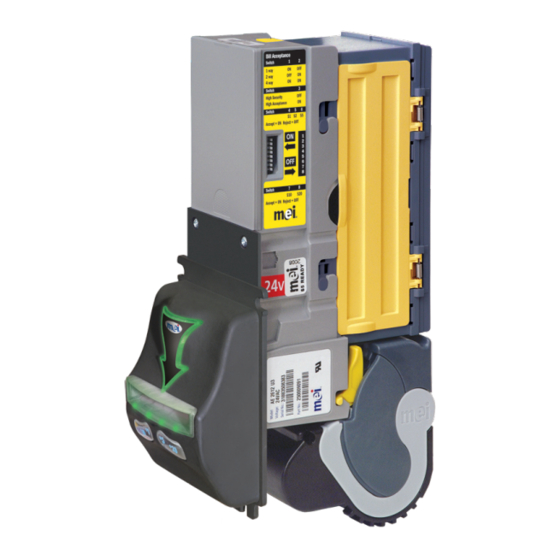

MEI Talos - Bill Recycler

  • Advanced Technology: Modern multi-sensor validation plus USB firmware updates for high accuracy, security, and field upgrades.

  • Recycler Function: Accepts $1, $2, $5, $10, $20 and recycles $1 notes (typically 25–30-bill capacity), so the same device can pay out bills as change instead of coins only.

  • Bill Stacking: commonly a 500-note up-stacker on TR7xx-U5 units.

  • Easy Maintenance: Tool-friendly path for cleaning and jam clearing; recycler models advertise ~50% fewer jams than prior generations.

  • Interface: MDB. Works with MEI Gryphon High-Capacity Coin-Operator.

  • Operator upside: Bill payout can reduce coin-hopper fills and is marketed for higher ticket completion.

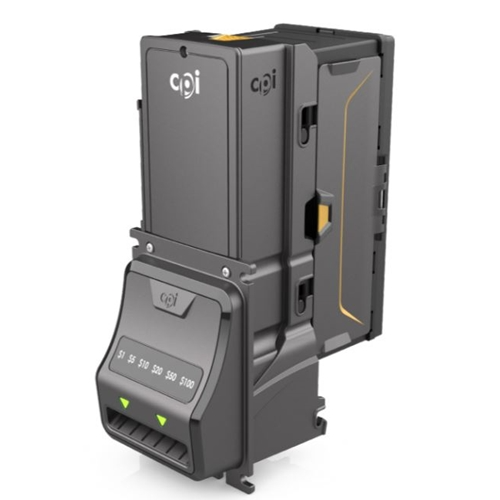

CPI VN27C2R - Bill Recycler

  • High Acceptance Rate: VN2700-class validation; typically, ~98–99% on $1–$20 with 4-way insert.

  • Recycler: The R is the VNR module on the back of a VN2700. Accepts $1, $2, $5, $10, $20 and pays change in $1 notes (typically 25–30-bill capacity); leftover notes go to the cash box.

  • Bill Stacking: commonly a 500-note up-stacker. Suited to busier machines if you empty on a normal route.

  • Firmware Updates: Flashport / handheld programmer for new note designs.

  • Interface: MDB. Works with CF7000 High Capacity Coin-Operators.

  • Service: Rear 2-digit display for recycler count, par level, and diagnostics. The bill path is still serviceable in the machine.

  • The direct modern replacement is typically the Talos Bill Recycler.

Comparing Bill Acceptor Models

  • Best for Modern and High-Volume Setups: MEI Talos – advanced technology, security, and multi-currency support.

  • Best for Standard Devices: Coin-Co BP4BX – proven reliability, especially with older kiosks.

  • Best for High-Volume Locations: CPI VN27C2R – fast acceptance and large stacker capacity.

Understanding Coin Mechanisms

Coin mechanisms validate, sort, and count coins. They’re crucial for providing change and accepting small transactions.

  • Coin-Co 9302-GX Coin-Operator

  • MEI Gryphon High Capacity Coin-Operator

  • CPI CF7000 High Capacity Coin-Operator

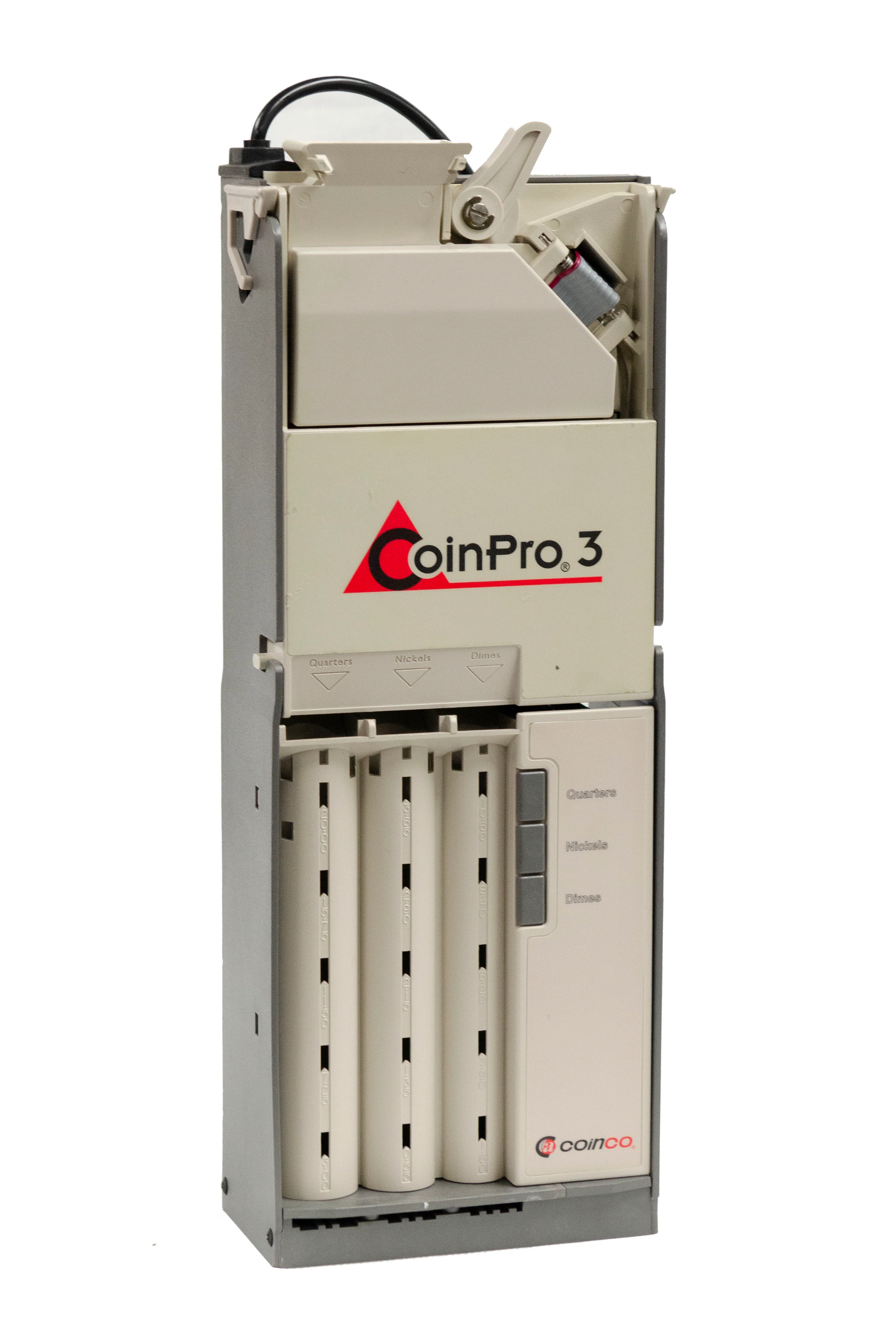

Coin-Co 9302-GX - Coin-Operator

  • Legacy Model: Long-standing design commonly found in TBS Kiosk/9900s.

  • Dependable Operation: Reliable for basic coin acceptance.

  • Limited Denominations: Contains 1 tube of quarters, dimes, and nickels.

  • Basic Change Dispensing: No advanced payout optimization.

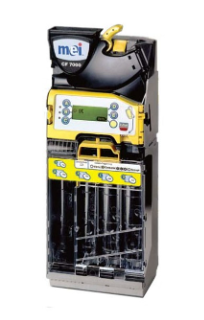

MEI Gryphon - High Capacity Coin-Operator

  • Flexible Coin Handling: Accepts and sorts 1 tube of dimes, 1 tube of nickels, and 4 tubes of quarters (6 tubes total).

  • High-Speed Processing: Fast acceptance and payout, minimizing transaction times.

  • Change Management: Improved payout algorithms to optimize change returned to customers.

  • Serviceability: Modular design for easy maintenance.

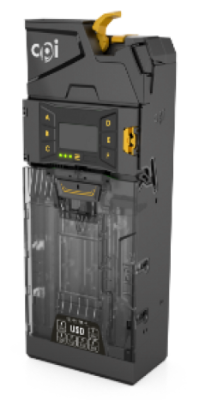

CPI CF7000 - High Capacity Coin-Operator

  • Multi-Coin Acceptance: Accepts and sorts 1 tube of dimes, 1 tube of nickels, and 3 tubes of quarters (5 tubes total).

  • Self-Diagnostics: Built-in checks help quickly spot jams or issues.

  • Security: Good counterfeit coin rejection.

  • Modular: Simplified service and upgrades.

  • The direct modern replacement is typically the MEI Gryphon High Capacity Coin-Operator

Comparing Coin Mechanism Models

  • Best for Advanced Features and Speed: MEI Gryphon – robust sorting and fast payouts.

  • Best for Standard Devices: Coin-Co 9302-GX – simple and proven reliability.

  • Best for Advanced Features: CPI CF7000 – solid all-around performance and diagnostics.

Key Takeaways

  • Compatibility: Always check TBS Support or your account manager for best fits.

  • Capacity: High-traffic locations benefit from bill and coin devices with greater stacker or hopper sizes.

  • Maintenance: Newer models like the MEI Talos and Gryphon are easier to service and update.
